RedBaron DayLite
Kód: 18271Detailní popis produktu
Specification

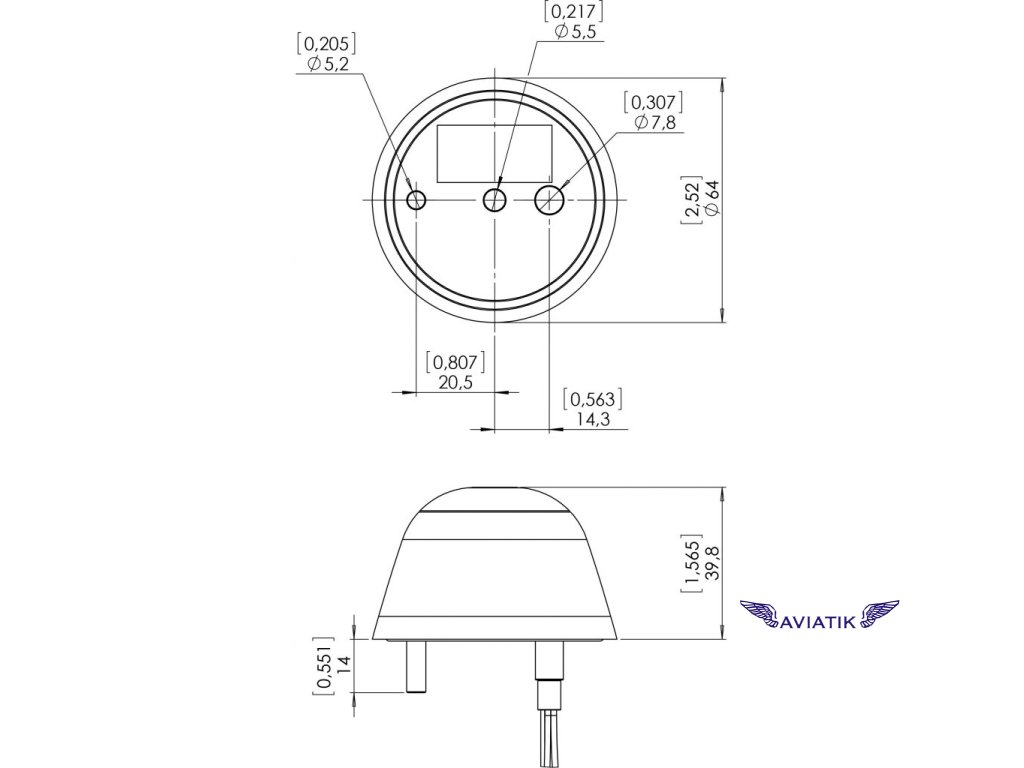

| Dimensions (mm): | 64 mm x 64 mm x 39,8 mm |
|---|---|
| Dimensions (inches): | 2.52“ x 2.52“ x 1.565“ |
| Weight (g): | 145 g |
| Weight (oz): | 5.11 oz |
| Operating Voltage Range: | 9 – 36 VDC |
| Input Current – Red Strobe: | 2.16A @32V, 2.3A @28V, 3.85A @12V, 4.6A @9V |
| Input Current – White Strobe: | 2.45A @32V, 2.75A @28V, 4.25A @12V, 4.75A @9V |
| Output Power – Red Strobe: | 61W @32V, 60W @28V, 50W @12V, 42.5W @9V |
| Output Power – White Strobe: | 68W @32V, 66W @28V, 43W @12V, 38.5W @9V |
| Repetition Rate of Strobe: | 50 cycles per minute |
| Recommended size of mounting screw: | M5x50mm or equivalent (Torque 3.0 Nm [2lb ft]) |
| Ambient Temperature: | from -55°C to +85°C from -55°F to +185°F |
| Overheat Protection: | YES (+85°C) |
| Reverse Polarity Protection: | YES |
| Transient Voltage: | 60V, both polarities |
| Under-Voltage Protection (lockout): | YES (9V) |
| Over-Voltage Protection (lockout): | YES (36V) |
| Waterproof, Dust-proof, Shock-proof, Vibration-proof: | YES |
Doplňkové parametry
| Kategorie: | Anticollision |
|---|---|
| ? Letadlo: | Elektro |
